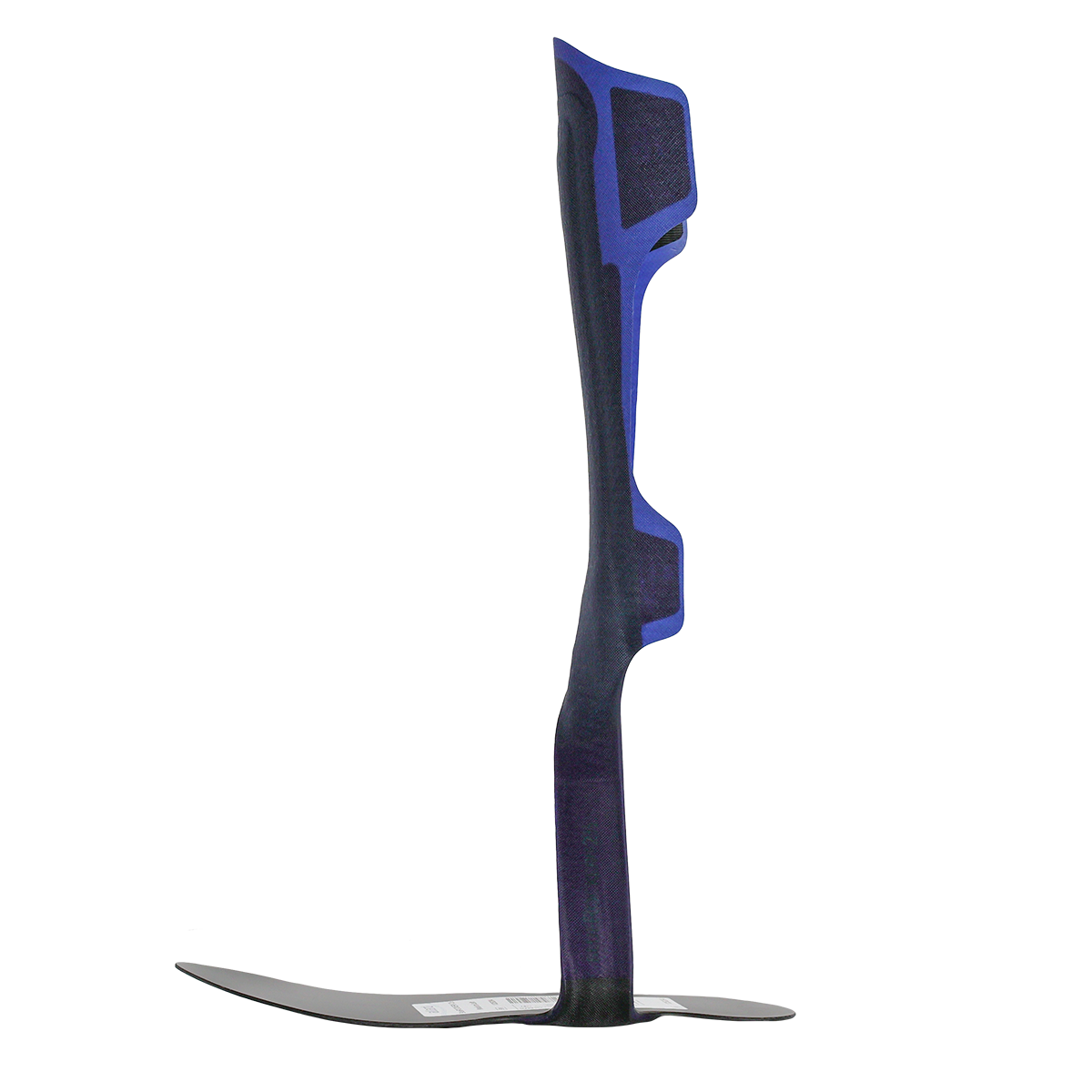

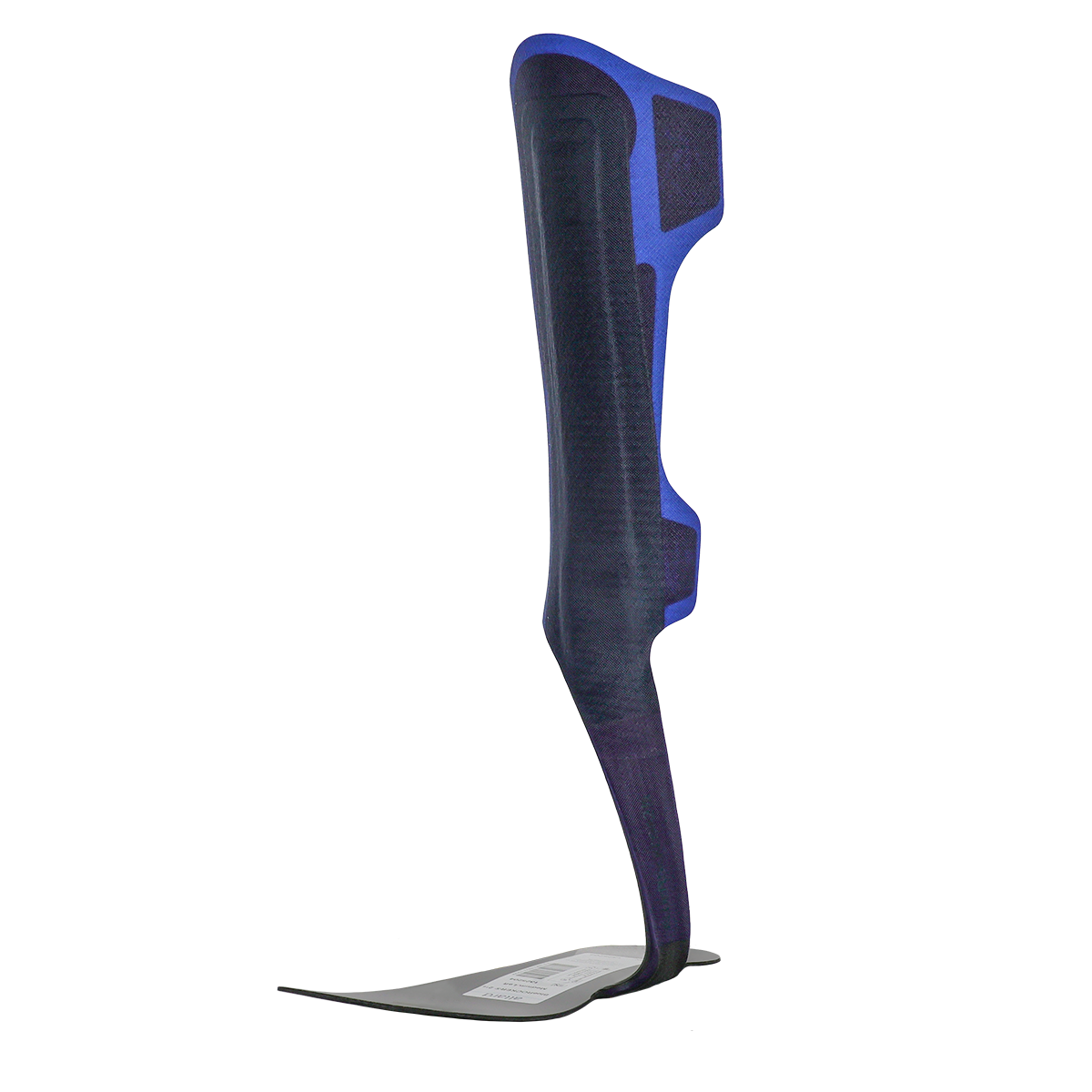

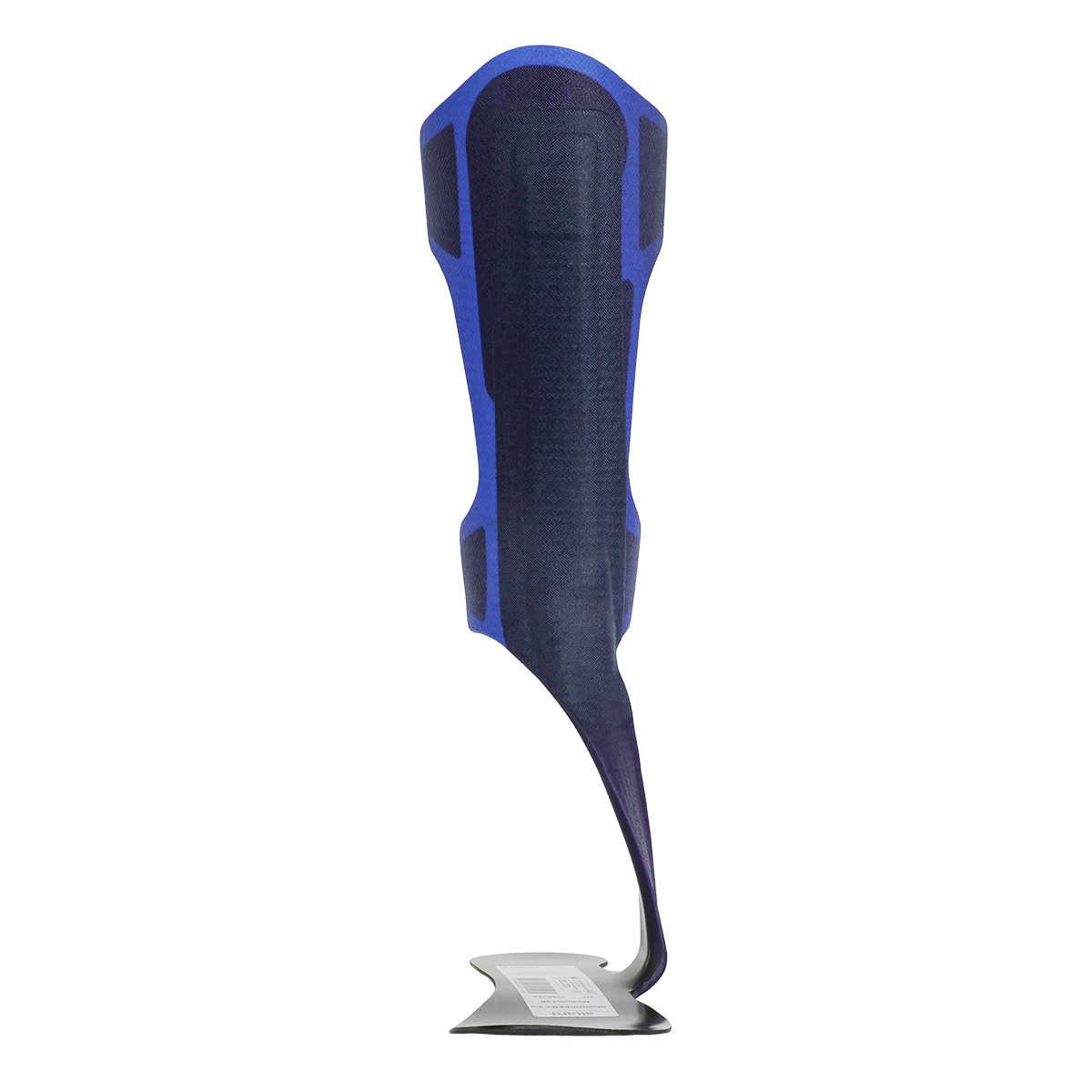

BlueROCKER® 2½
BlueROCKER® 2½ is a highly stable ankle-foot orthosis (AFO) designed for individuals with foot drop, moderate to severe ankle instability, and moderate to severe proximal involvement. The orthosis is designed to provide support, improve toe-off and contribute to a more stable gait pattern.
BlueROCKER® 2½ has a heel height of 7 mm and a lower toe lift than BlueROCKER® 2.0, providing more space in the toe box and improved shoe fit.
BlueROCKER® 2½ is supplied with a complete strap set and pre-applied MikroFix for easy attachment of padding. The straps are made from a strong, durable material and are available with or without a D-ring. They can be applied for either inside or outside closure on the orthosis.
Recommended Range Of Application
For individuals with foot drop due to conditions such as stroke, multiple sclerosis, post-polio syndrome, muscular dystrophy, spinal cord injuries, traumatic brain injuries, Guillain-Barré syndrome, Charcot-Marie-Tooth disease, myelomeningocele, neuropathy and cerebral palsy
Contraindications
Foot and/or leg ulcers, moderate to severe edema, moderate to severe foot deformities, and severe proximal deficits (e.g. severe quadriceps spasticity, genu recurvatum, genu valgum or genu varum).
Other
More about fitting and product selection can be found in the Allard AFO Professional Instruction.
| Item No. | Model | Size | L/R | Footplate Length | Height |
|---|---|---|---|---|---|
| 289701010 | BlueROCKER® 2½ | X-Small | Left | 21 cm | 36 cm |
| 289701011 | BlueROCKER® 2½ | Small | Left | 23 cm | 38 cm |
| 289701012 | BlueROCKER® 2½ | Medium | Left | 24,5 cm | 40,5 cm |
| 289701013 | BlueROCKER® 2½ | Large | Left | 27 cm | 43 cm |
| 289701014 | BlueROCKER® 2½ | X-Large | Left | 28,5 cm | 45 cm |
| 289702010 | BlueROCKER® 2½ | X-Small | Right | 21 cm | 36 cm |
| 289702011 | BlueROCKER® 2½ | Small | Right | 23 cm | 38 cm |
| 289702012 | BlueROCKER® 2½ | Medium | Right | 24,5 cm | 40,5 cm |
| 289702013 | BlueROCKER® 2½ | Large | Right | 27 cm | 43 cm |
| 289702014 | BlueROCKER® 2½ | X-Large | Right | 28,5 cm | 45 cm |
| 289721011 | BlueROCKER® 2½ w/D-ring | Small | Left | 23 cm | 38 cm |
| 289721012 | BlueROCKER® 2½ w/D-ring | Medium | Left | 24,5 cm | 40,5 cm |
| 289721013 | BlueROCKER® 2½ w/D-ring | Large | Left | 27 cm | 43 cm |
| 289721014 | BlueROCKER® 2½ w/D-ring | X-Large | Left | 28,5 cm | 45 cm |
| 289722010 | BlueROCKER® 2½ w/D-ring | X-Small | Right | 21 cm | 36 cm |
| 289722011 | BlueROCKER® 2½ w/D-ring | Small | Right | 23 cm | 38 cm |
| 289722012 | BlueROCKER® 2½ w/D-ring | Medium | Right | 24,5 cm | 40,5 cm |
| 289722013 | BlueROCKER® 2½ w/D-ring | Large | Right | 27 cm | 43 cm |
| 289722014 | BlueROCKER® 2½ w/D-ring | X-Large | Right | 28,5 cm | 45 cm |
| 289721010 | BlueROCKER® 2½ w/D-ring | X-Small | Left | 21 cm | 36 cm |
-
