SOT Resting Splint
SOT (Smart Orthotic Treatment) is a resting splint for the spastic and paretic hand, when the goal is to maintain or increase the mobility of the hand.The orthosis is smooth and lightweight. The S.O.T has an aluminium core which allows adjustment to the desired position. The aluminium core is embedded into polyethylene foam, which is covered with fabric. The brace is delivered in aresting position. A resting position can offer pain relief, relaxation to the hand and it also provides a good biomechanical position that may reduce the risk of flexor shortening of the wrist and fingers.The orthosis anatomic configuration supports the important thenar muscle, the CMC- and MCP joint, which is particularly important for the intended patient groups, when the thumb tends to adduct in the CMC joint and hyperextend in the MCP joint. S.O.T Resting splint increases the conditions for an effective grip.
Recommended Range Of Application:
Stroke, CP, rheumatoid arthritis, radialis paresis,muscular dystrophy, edema or plexus injury.

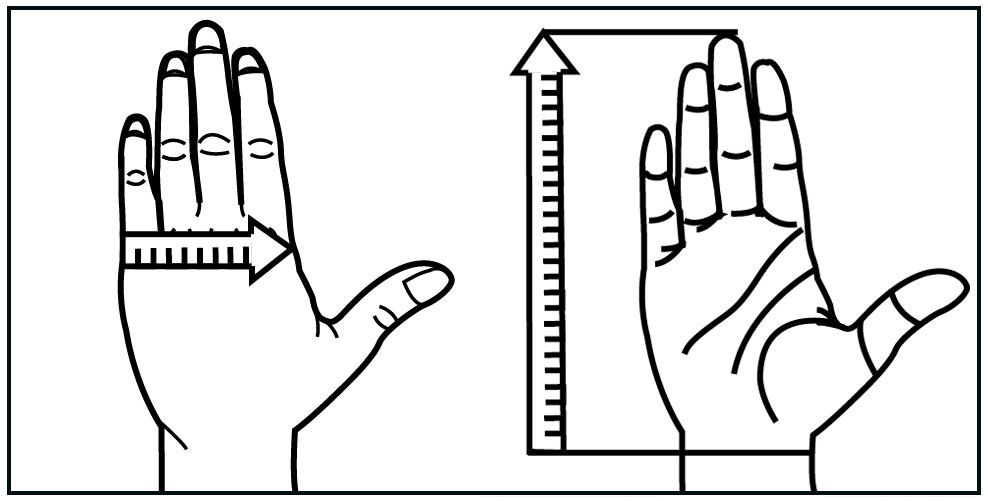

Measurement:
Measurement text 1: MCP Width
Measurement text 2: Length from wrist to end of finger
Other:
Besides the extra wrist band , there are two other accessories; a finger divider and wedges in three different sizes.
| Item No. | Model | Color | Size | L/R | Measure 1 | Measure 2 |
|---|---|---|---|---|---|---|
| 287101008 | SOT Resting Splint | Black | XXX-Small | Left | 5,5 cm | ≤ 12 cm |
| 287101009 | SOT Resting Splint | Black | XX-Small | Left | ≤ 6,5 cm | ≤ 14 cm |
| 287101010 | SOT Resting Splint | Black | X-Small | Left | ≤ 7,5 cm | ≤ 16 cm |
| 287101011 | SOT Resting Splint | Black | Small | Left | ≤ 7,5 cm | ≤ 18,5 cm |
| 287101012 | SOT Resting Splint | Black | Medium | Left | ≤ 8,5 cm | ≤ 20 cm |
| 287101013 | SOT Resting Splint | Black | Large | Left | ≤ 9 cm | ≤ 21 cm |
| 287102008 | SOT Resting Splint | Black | XXX-Small | Right | 5,5 cm | ≤ 12 cm |
| 287102009 | SOT Resting Splint | Black | XX-Small | Right | ≤ 6,5 cm | ≤ 14 cm |
| 287102010 | SOT Resting Splint | Black | X-Small | Right | ≤ 7,5 cm | ≤ 16 cm |
| 287102011 | SOT Resting Splint | Black | Small | Right | ≤ 7,5 cm | ≤ 18,5 cm |
| 287102012 | SOT Resting Splint | Black | Medium | Right | ≤ 8,5 cm | ≤ 20 cm |
| 287102013 | SOT Resting Splint | Black | Large | Right | ≤ 9 cm | ≤ 21 cm |
| 287110009 | MCP wedge | Black | XX-Small | Bilateral | Width 65 mm | Height 10 mm |
| 287110011 | MCP wedge | Black | Small | Bilateral | Width 75 mm | Height 15 mm |
| 287110013 | MCP wedge | Black | Large | Bilateral | Width 90 mm | Height 20 mm |
| 287120003 | Finger divider | Black | Children | Bilateral | - | - |
| 287120005 | Finger divider | Black | Medium | Bilateral | - | - |
| 287120007 | Finger divider | Black | Large | Bilateral | - | - |
| 287130009 | Extra band | Black | XXX-Small-X-Small | Bilateral | - | - |
| 287130012 | Extra band | Black | Small-Large | Bilateral | - | - |

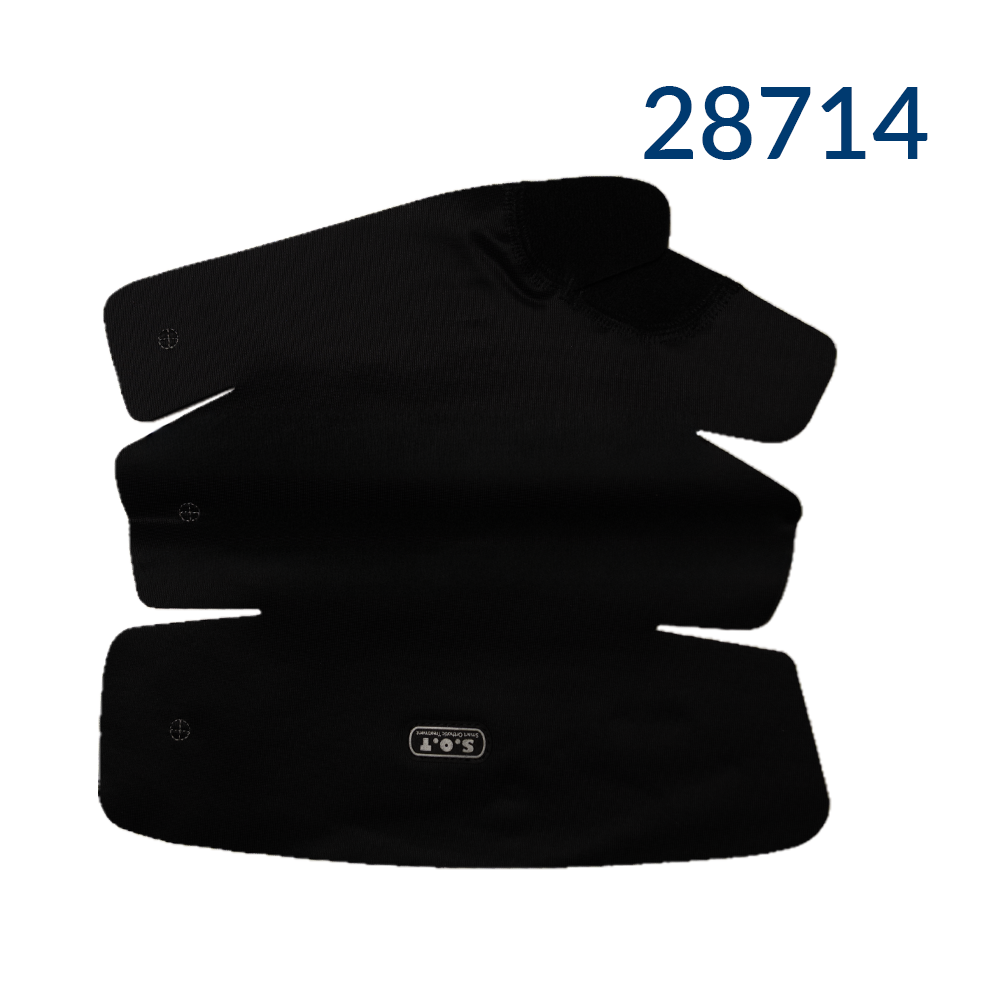

| 287141008 | Extra cover | Black | XXX-Small | Left | - | - |
| 287141009 | Extra cover | Black | XX-Small | Left | - | - |
| 287141010 | Extra cover | Black | X-Small | Left | - | - |
| 287141011 | Extra cover | Black | Small | Left | - | - |
| 287141012 | Extra cover | Black | Medium | Left | - | - |
| 287141013 | Extra cover | Black | Large | Left | - | - |
| 287142008 | Extra cover | Black | XXX-Small | Right | - | - |
| 287142009 | Extra cover | Black | XX-Small | Right | - | - |
| 287142010 | Extra cover | Black | X-Small | Right | - | - |
| 287142011 | Extra cover | Black | Small | Right | - | - |
| 287142012 | Extra cover | Black | Medium | Right | - | - |
| 287142013 | Extra cover | Black | Large | Right | - | - |

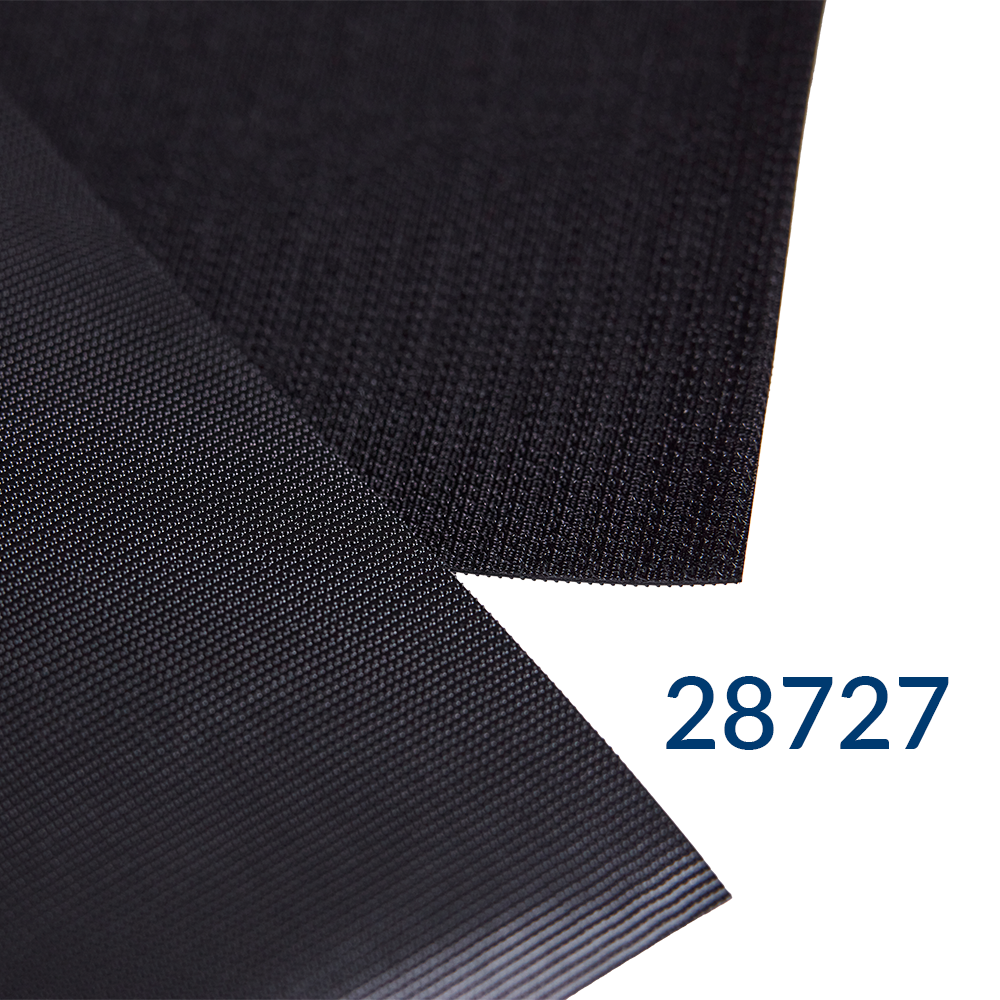

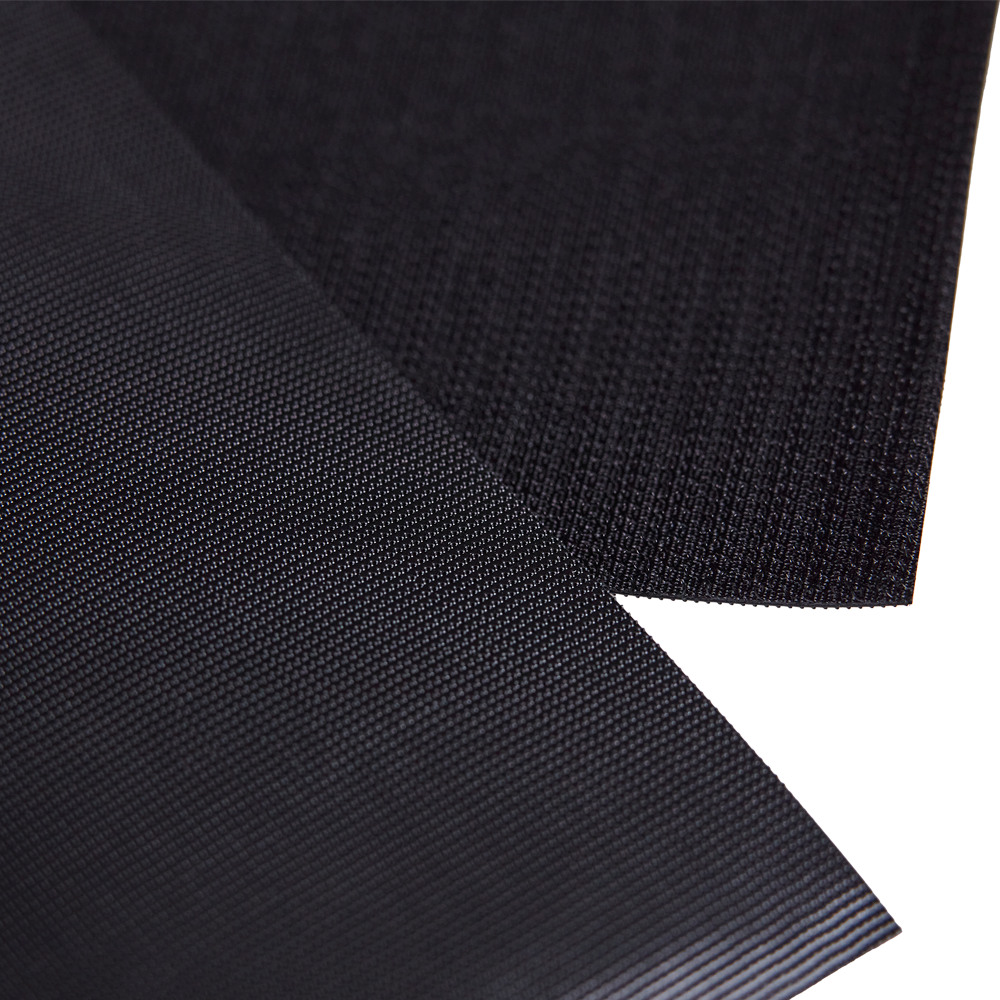

| 287260000 | SOT Fabric | Black | 35 x 35 cm | - | - | - |

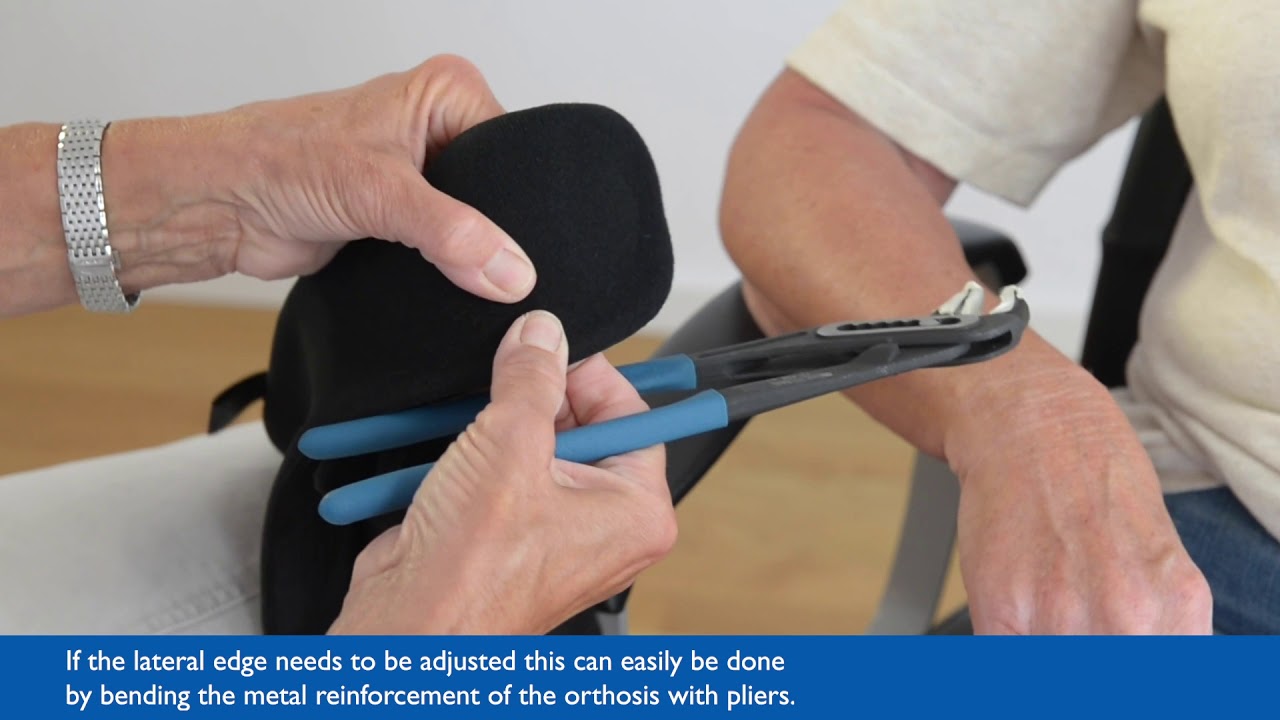

SOT Resting Splint Initial Fitting

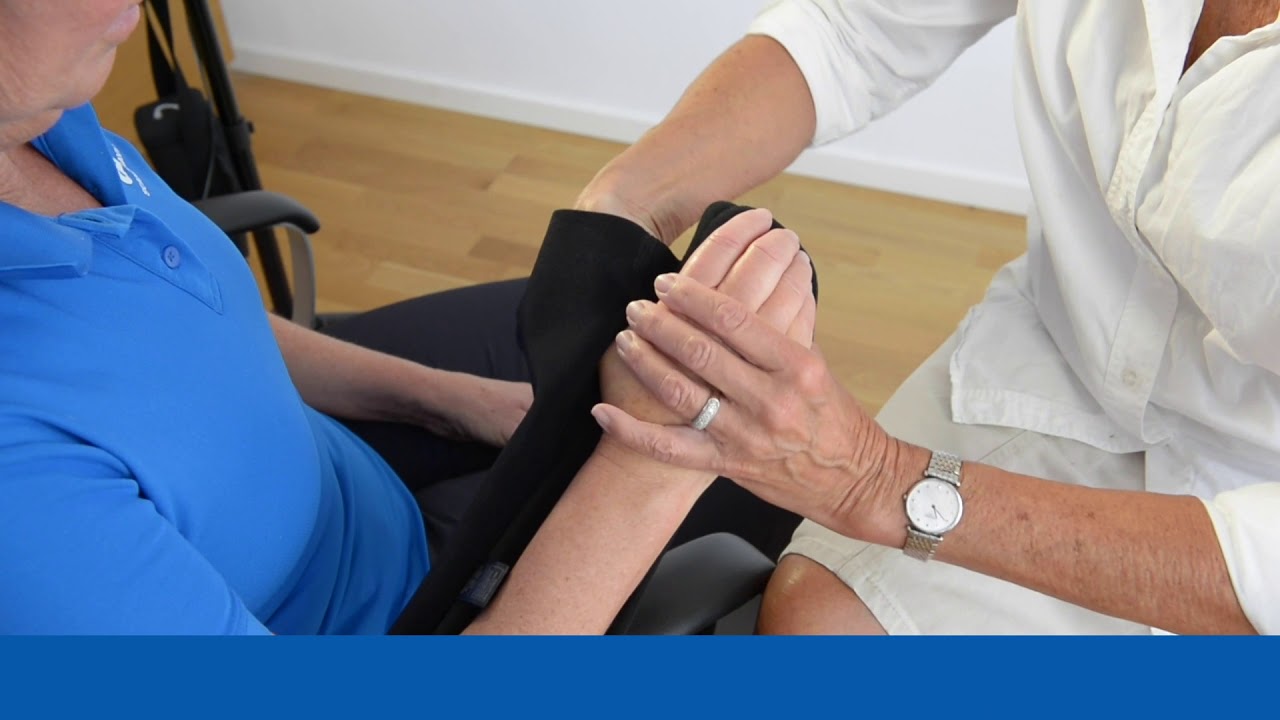

SOT Resting Splint From Resting to Position of Safety

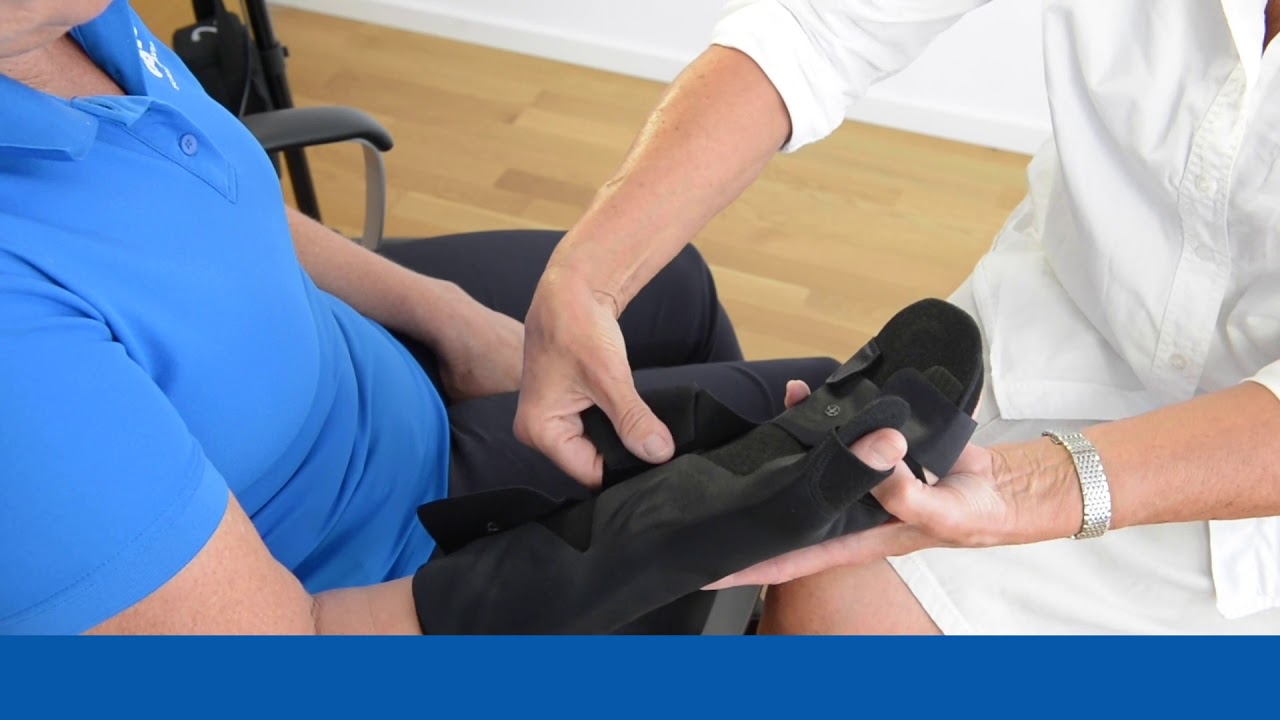

SOT Resting Splint – Fitting the wrist strap

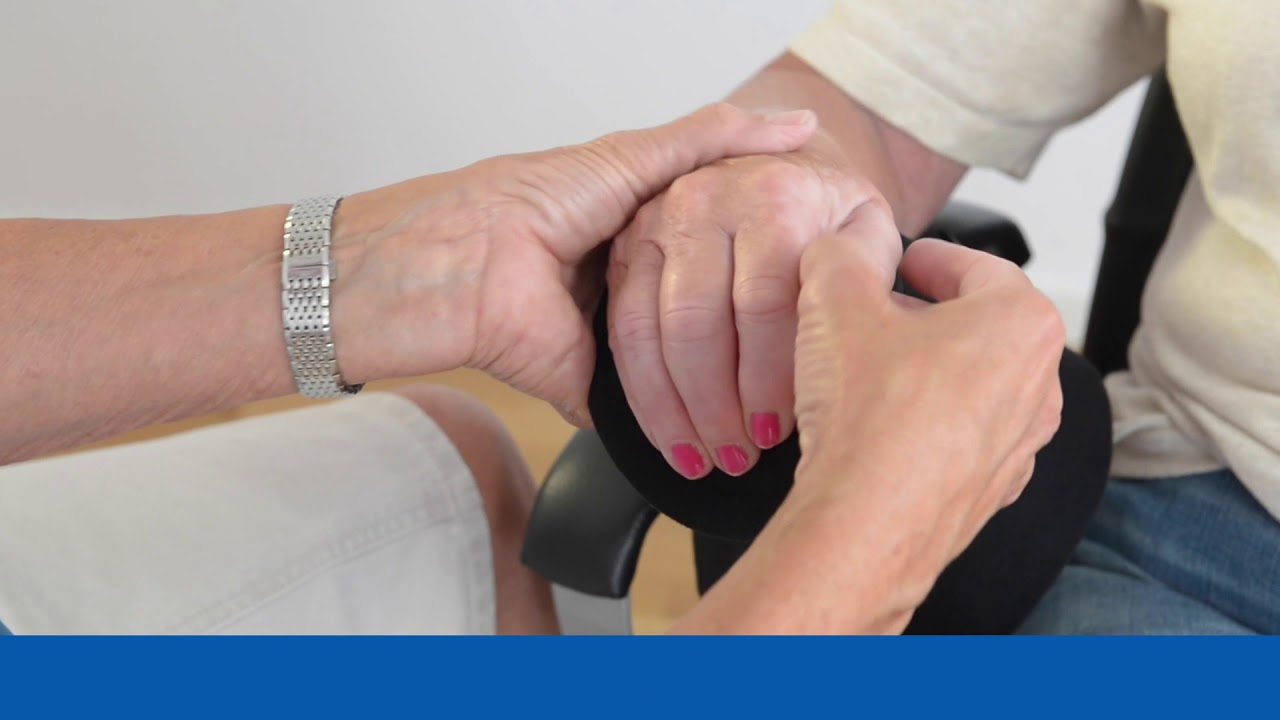

SOT Resting Splint – Fitting the wedge

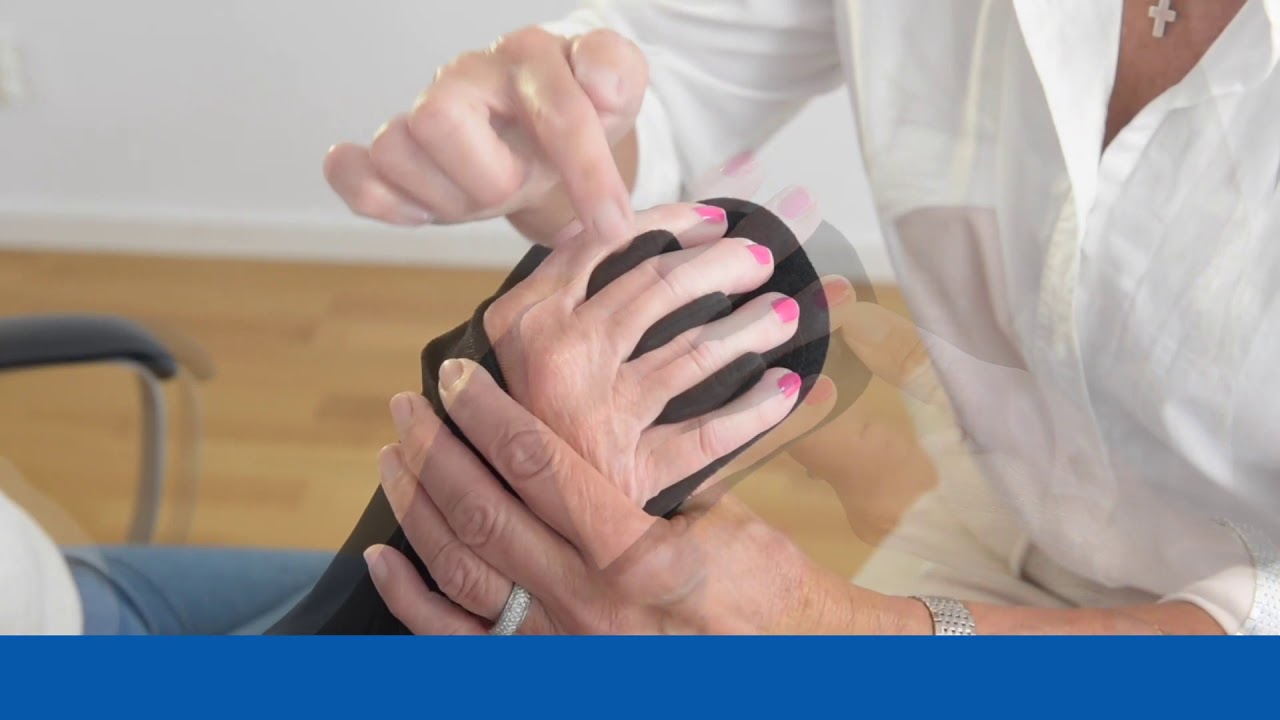

SOT Resting Splint – Fitting Finger Divider
